Barbed Wire Fence

Short Description:

Barbed wire fence mainly serves in protecting of grass boundary, railway, highway, agriculture, animal husbandry, dwelling house, plantation or fencing. etc.


Product Detail

Tags

Details:



Usage: Barbed  wire  fence mainly serves in protecting of grass boundary, railway, highway, agriculture, animal husbandry, dwelling house, plantation or fencing. etc.

Material: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.

Features: barbed wire fence include galvanized barbed wire and pvc coated barbed wire, Various colors can be made: blue, green, yellow and other colors.

Weaving method: Twist plait

Other: any special request is available.



Barbed wire:

Barbed wire, also known as barb wire less often, bob wire or, in the southeastern United States, bobbed wire), is a type of steel fencing wire constructed with sharp edges or points arranged at intervals along the strand(s). It is used to construct inexpensive fences and is used atop walls surrounding secured property. It is also a major feature of the fortifications in trench warfare (as a wire obstacle).

Feicheng barbed wire is manufactured by galvanized wire or PVC coated galvanized wire in IOWA type, with 2 strands, 4 points. Barbed distance is 3 - 6 inches.

PVC color could be green, white, black, yellow and so on.

Barbed wire is suitable for industry, agriculture, animal husbandry, dwelling house, plantation for fencing.



Barbed wire is a type of fencing wire constructed with sharp edges or points arranged at intervals along the strand(s). Barbed-wire fencing requires only fence posts, wire and fixing devices such as staples. It is simple to construct and quick to erect by a skilled fencer. It is an inexpensive fencing option, mainly serves in protecting of grass boundary, railway, highway, etc



Standard Galvanized Iron Wire fall in grades as follows:







Type

Wire Gauge (SWG)

Barb Distance (cm)

Barb Length (cm)

Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire

10# x 12#

7.5-15

1.5-3

12# x 12#

12# x 14#

14# x 14#

14# x 16#

16# x 16#

16# x 18#

PVC coated barbed wire; PE barbed wire

before coating

after coating

7.5-15

1.5-3

1.0mm-3.5mm

1.4mm-4.0mm

BWG11#-20#

BWG8#-17#

SWG11#-20#

SWG8#-17#



PVCPEcoating thickness:0.4mm-0.6mm; different colors or length are available at customers request.

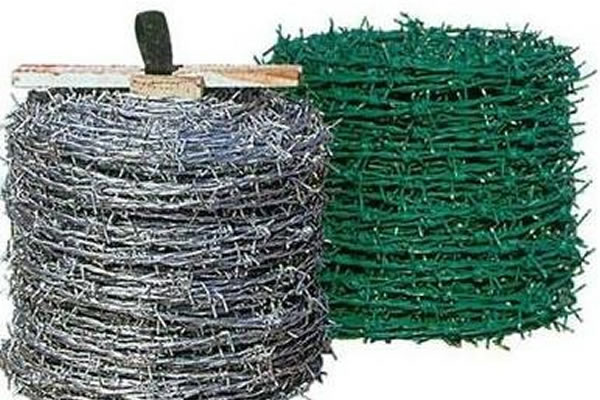

PVC coated Barbed Wire

Material: PVC coated Barbed Wire can be with different treatment, like PE or PVC coated. Core Wire can be galvanized Iron Wire or Black Wire

Application: PVC coated Wire offered by us is suitable for industry, agriculture, animal husbandry or fencing

Packing: Carton/PP woven cloth/Pallet or loose packing



PVC coated Barbed Wire; PE Barbed Wire

Wire Gauge

Barbed Spacing (cm)

Barbed Length (cm)

Before coating

After coating

7.5-15

1.5-3.0

1.0mm-3.5mm

1.4mm-4.0mm

BWG11-20

BWG8-17

PVC or PE coating thickness:0.4mmto0.6mm;Different colors or length are available at customers request
